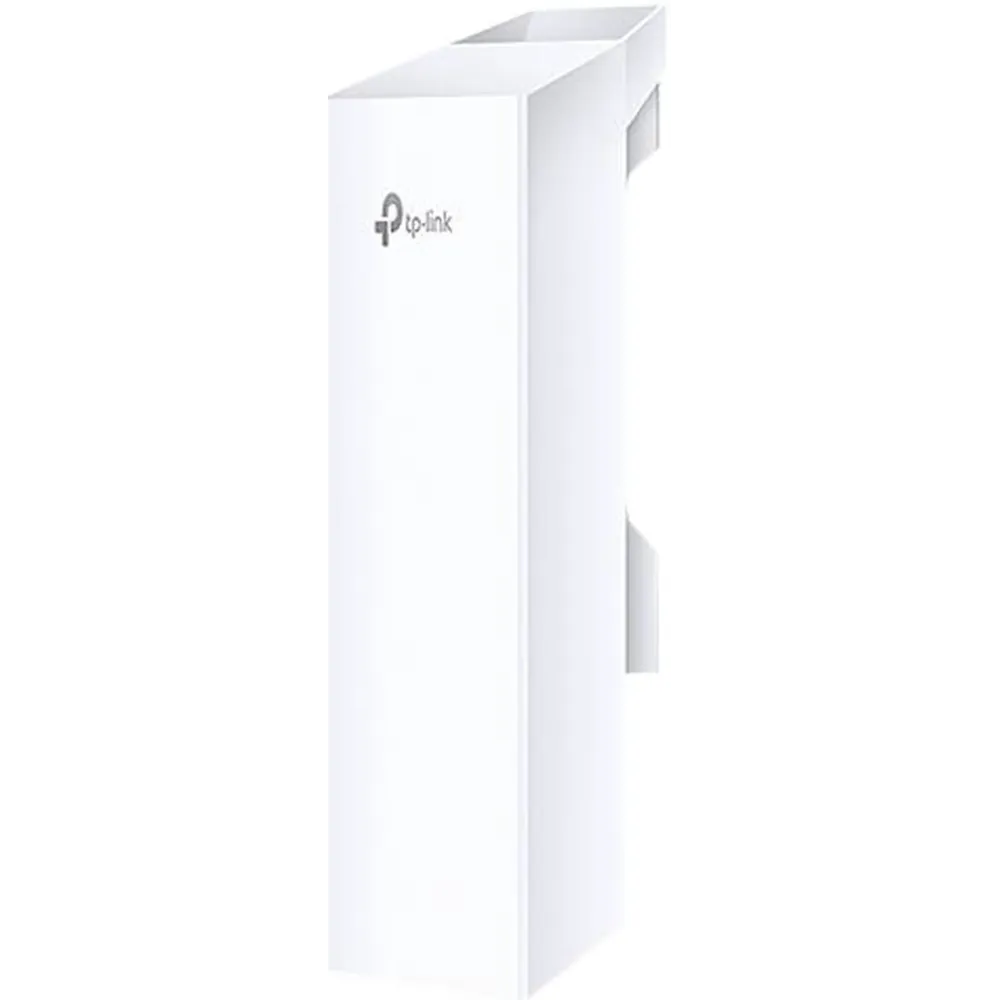

TP-Link 2.4GHz N300 Long Range Outdoor CPE for PtP and PtMP Transmission | Point to Point Wireless Bridge | 9dBi, 5km+ | Passive PoE Powered w/ Free PoE Injector | Pharos Control

0 reviews 0 sold. Only 100 remain

$59.00

Product Code: CPE210

Availability: In Stock

Viewed 16 times

Qty

Categories Cart Account Search Recent View

Built in 9dBi 2x2 dual polarized directional MIMO antenna
Adjustable transmission Power from 0 to 27dBm/500mW. Power Consumption: 10.5 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable
System level optimizations for more than 5km long-range wireless transmission (only for paired Point-to-Point or Point-to-MultiPoint transmission)
TP Link Pharos tdma (Time Division Multiple Access) technology improves product Performance in throughput, Capacity and latency Performance
Centralized management system Pharos Control
AP/ client/ AP router/ AP client router (WISP) operation modes
Passive PoE adapter Suppots up to 60 meter (200 Feet) Power over Ethernet deployment and allows the device to be reset remotely

Model
Brand	TP-Link
Model	CPE210

Details
Standards	IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Wireless Data Rates	Up to 300Mbps
Frequency Band	2.4 GHz - 2.483 GHz
Antenna	Built-in 9 dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65 degree (H-Plane) / 35 degree (E-Plane)
Transmitted Power	27 dBm / 500mw (Adjustable power by 1 dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Interface	1 x 10/100 Mbps Shielded Ethernet Port (Passive PoE in) 1 x Grounding Terminal 1 x Reset Button PoE Adapter: 1 x AC Jack with Ground 1 x 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
Buttons	PoE Adapter: Remote Reset Button

Environmental
Temperature	Operating Temperature: -30 ~ 70 degree Celsius (-22 ~ 158 degree Fahrenheit) Storage Temperature: -40 ~ 70 degree Celsius (-40 ~ 158 degree Fahrenheit)
Humidity	Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing

Dimensions & Weight
Dimensions	2.36" x 8.82" x 3.11" PoE Adapter: 1.32" x 4.33" x 2.24"

Features
Features	Built-in 9 dBi 2x2 dual-polarized directional MIMO antenna Adjustable transmission power from 0 to 27 dBm / 500mw System-level optimizations for more than 5km long range wireless transmission TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications Centralized Management System - Pharos Control AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely

Packaging
Package Contents	Outdoor Wireless CPE 24V 1A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide
