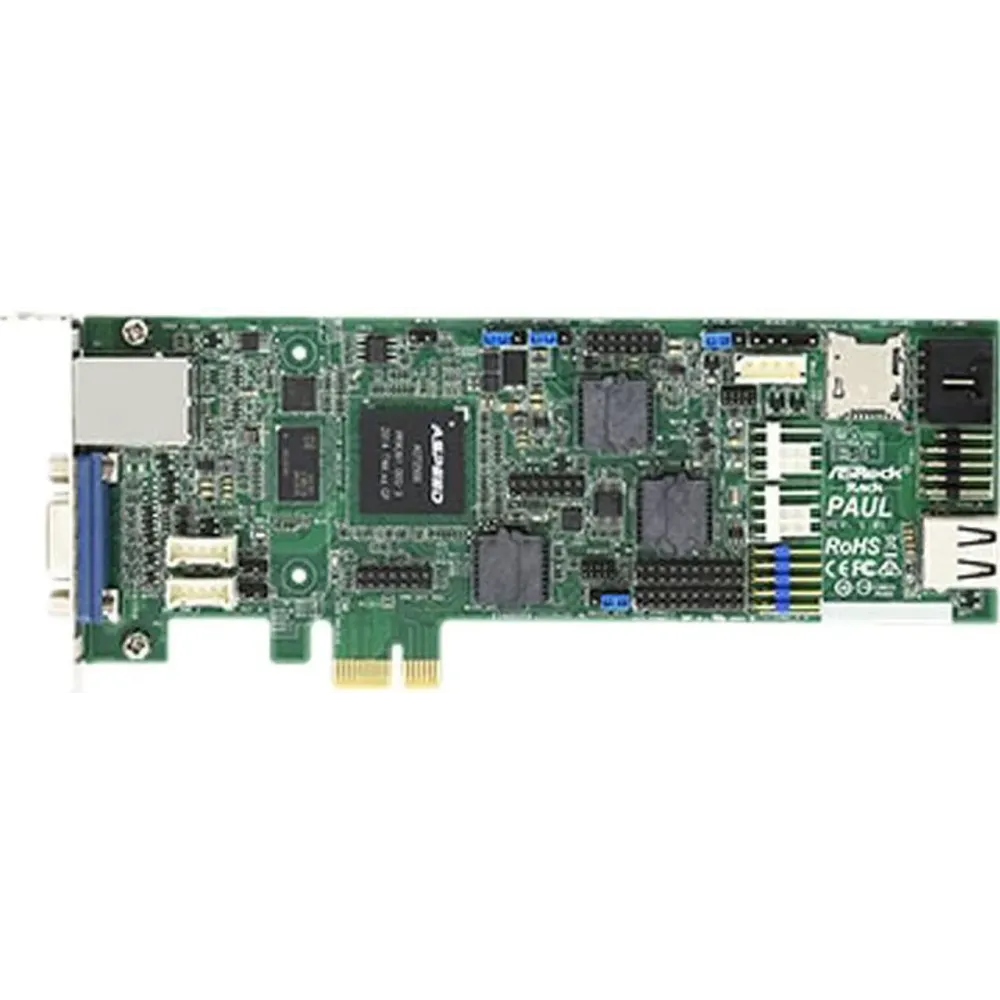

Asrock Rack Server Riser Card/Accessories PAUL Low-profile PCIe IPMI Card
0 reviews
0 sold. Only 100 remain
$199.00
Product Code: PAUL
Availability: In Stock
Viewed 28 times
Product Description
| Brand | ASRock Rack |
|---|---|
| Model | PAUL |
| Type | Interface Module |
|---|---|
| Specifications | Controller: ASPEED AST2500 Feature: Base Board Management Controller (IPMI2.0 with iKVM support) VGA (1920x1200@60Hz 32bpp) Memory: 2 SPI flash ROM 32MB 1 DDR4 SDRAM 4Gb Physical Status Form Factor: Low profile PCIe add-in-card Dimensions: 168.45 x 68.9 mm I/O Upstream interface: PCI Express2.0 x1 External: 1 RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps), 1 DB-15 (VGA) Internal connectors: 2 SMBus header 1 x PMBus header 1 x IPMB header 1 x BMC reset 1 x BMC debug header 1 x V BIOS or system BIOS ROM 2 x BMC ROM 1 x Dual ROM select header 1 x TPM (13-pin, LPC) 1 x LPC header (13-pin) 2 x Fan header 1 x USB2.0 (5-pin): KVM and standby power 1 x header (18-pin): GPIO, NCSI 1 x header (18-pin): case open, system fail, GPIO, SMBus, PECI, voltage monitoring 1 x COM port (9-pin) 1 x micro-SD connector 1 x USB Type-A (USB 2.0) Power Power consumption: 7.54W Input: 1 USB2.0 header (5-pin, 5VSB) Goldfinger (+12V) Environment Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
