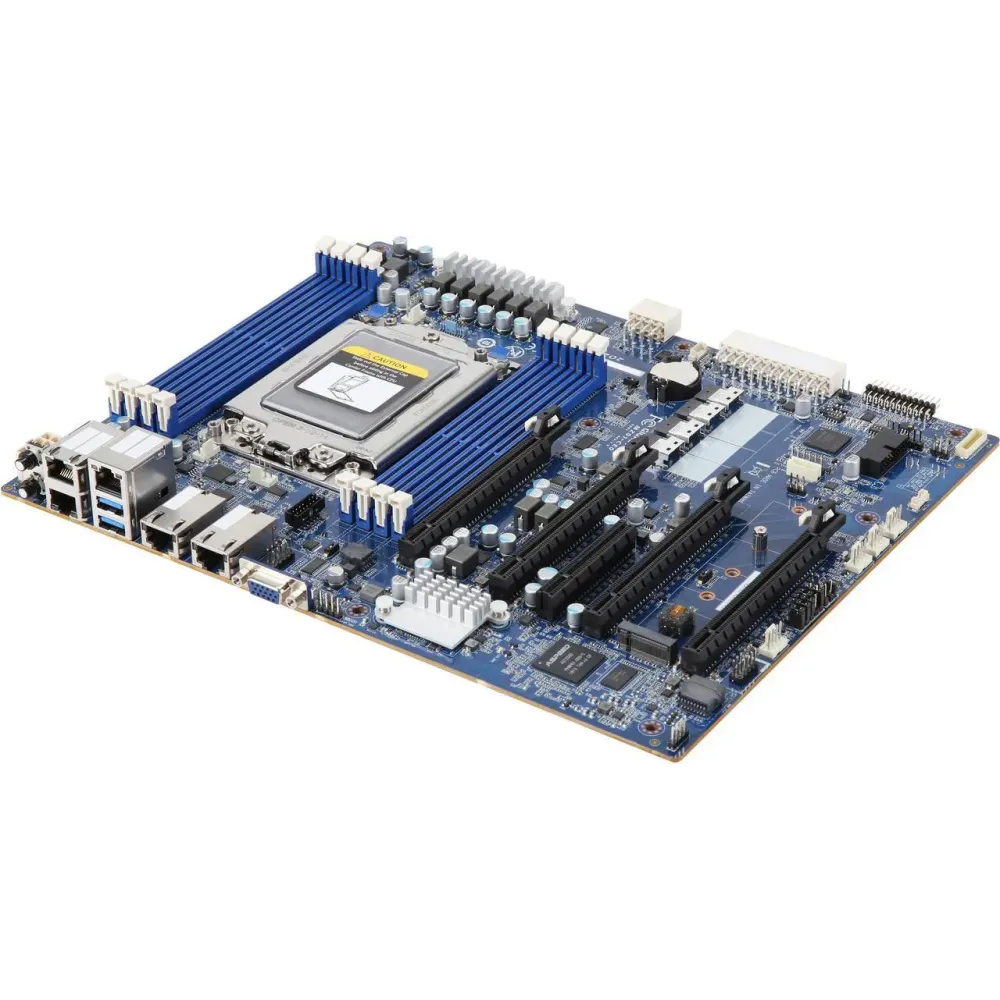

GIGABYTE MZ01-CE0 Motherboard - AMD EPYC™ 7003/7002 - ATX UP
0 reviews
0 sold. Only 100 remain
$499.00
Product Code: MZ01-CE0
Availability: In Stock
Viewed 33 times
Product Description
| Brand | GIGABYTE |
|---|---|
| Model | MZ01-CE0 |
| CPU Socket Type | Socket SP3 |
|---|---|
| CPU Type | AMD EPYC 7000 series processor family Single processor, 14nm Up to 32-core, 64 threads TDP up to 180W |
| DDR4 Standard | DDR4 2666 / 2400 / 2133 MHz |
|---|---|
| Maximum Memory Supported | RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported |
| Channel Supported | 8-Channel |
| PCI Express 3.0 x16 | Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus) Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus) Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus) Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus) |
|---|---|
| PCI Express x8 | Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus) |
| Other Slots | 1 x M.2 slot: M-key PCIe Gen3 x4 Supports NGFF-2242/2260/2280/22110 cards |
| SATA | 4 x SlimSAS for 16 x SATA III 6Gb/s ports |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2) 2 x 1Gb/s LAN ports (Intel I210-AT) 1 x 10/100/1000 management LAN |
|---|
| Video Ports | 1 x VGA port |
|---|---|
| RJ45 | 4 x RJ45 |
| USB 3.0 | 2 x USB 3.0 |
| Features | AMD EPYC 7000 series processor family 8-Channel RDIMM / LRDIMM DDR4, 8 x DIMMs 2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2) 2 x 1Gb/s LAN ports (Intel I210-AT) 1 x dedicated management port 4 x SlimSAS (for 16 x SATA 6Gb/s) ports Ultra-Fast M.2 with PCIe Gen3 x4 interface Up to 5 x PCIe Gen3 expansion slots Aspeed AST2500 remote management controller |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Package Contents | 1 x MZ01-CE0 1 x I/O shield 1 x Quick start guide 2 x SlimSAS for 8 x SATAIII 6Gb/s cables |
|---|
