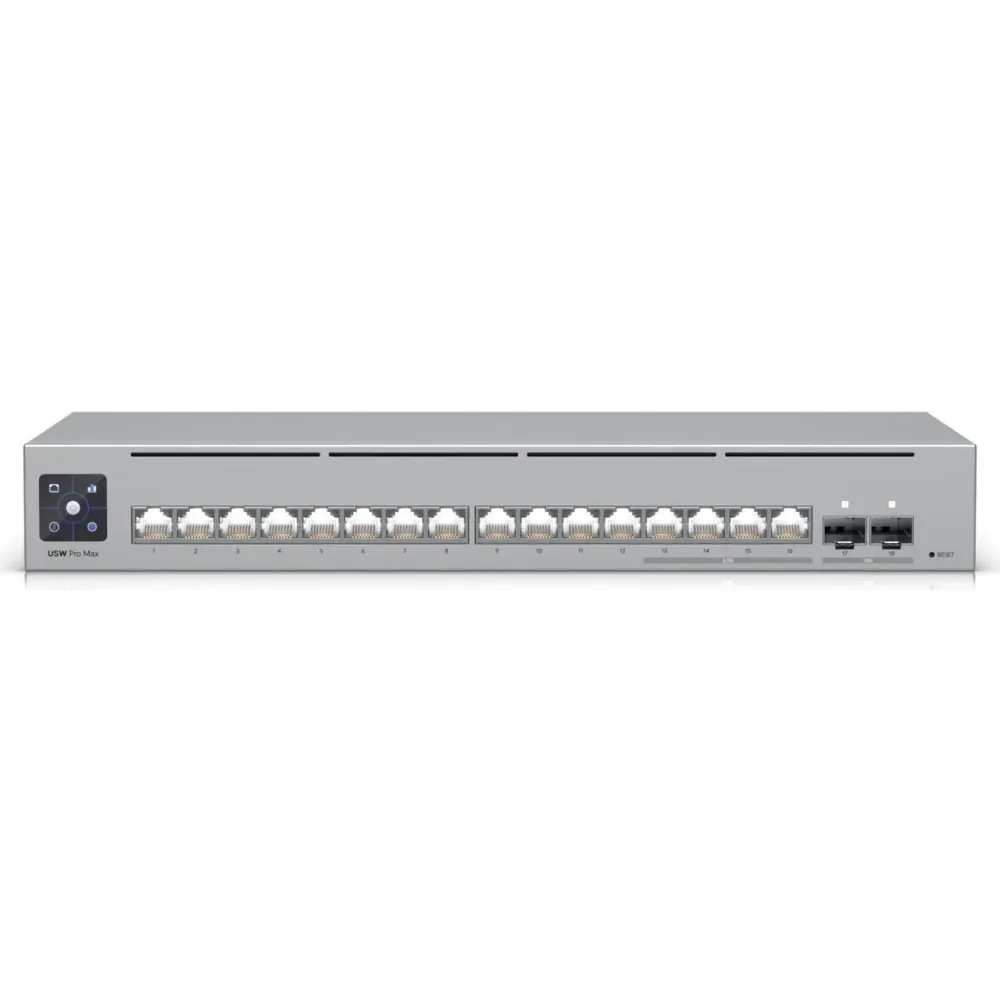

Ubiquiti Pro Max 16, 16-port Layer 3

0 reviews 0 sold. Only 100 remain

$249.00

Product Code: USW-Pro-Max-16

Availability: In Stock

Viewed 15 times

Qty

Categories Cart Account Search Recent View

16-port, Layer 3 Etherlighting switch.
Etherlighting ports that illuminate to indicate port location, speed / link, and native VLAN / network.
(4) 2.5 GbE RJ45 ports.
(12) GbE RJ45 ports.
(2) 10G SFP+ ports.
Versatile desktop, wall, and rack mounting.
Silent, fanless cooling system.
Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Requires add-on Rack Mount accessory.
Power method: Type-C adapter.
Power supply: 5V, 25W.
Max. power consumption: 25W.
UniFi Network: Version 8.1.127 and later.

Format & Standards
Format	Rackmount
Network Management Type	Managed

Ports & Interface
Primary Ports	16 x RJ45 + 2 x SFP
Primary Port Speed	Total non-blocking throughput 42 Gbps Switching capacity 84 Gbps Forwarding rate 62.496 Mpps
Primary Port Type	(12) GbE RJ45 ports (4) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports

Details
PoE	No
Layer	3
Layer 2 Features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 Features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Port Mirroring	Yes
LEDs	Ethernet Locating Speed/link Native VLAN/network SFP+ Locating Speed/link Native VLAN/network
Button	Factory reset

Power Supply
Power	Power method Type-C adapter Power supply 5V, 25W Max. power consumption 25W
Max Power Consumption	25 W

Dimensions & Weight
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight	1.95 kg (4.3 lb)

Environmental
Certification	CE, FCC, IC
System Requirement	UniFi Network Version 8.1.127 and later
Temperature	-5 to 40° C (23 to 104° F)
Humidity	10 to 90% noncondensing
